Smart window system
Intelligent type based on IT
It is window system for small electric motors that automatically controls the incoming angle of sunlight for the application of new renewable energy, industry safe management and clean workplace.
Product features
- 01
Energy efficiency improvement & saving
- Using eco-friendly/new renewable energy (solar power)
- Reduction of energy costs (lighting, heating)
- Strengthening competitiveness of production and products (power and deficit reduction, quality improvement, accident prevention)
- 02
Industrial safety management improvement
- Natural lighting system that uses solar power (improving productivity)
- Reduction of defect rate (working environment)
- Reduction of heating costs in the winter (using solar power)
- Fire prevention (electric and heating products) and accidents (working environment)
- Meeting the requirements of clean workplaces (working environment)

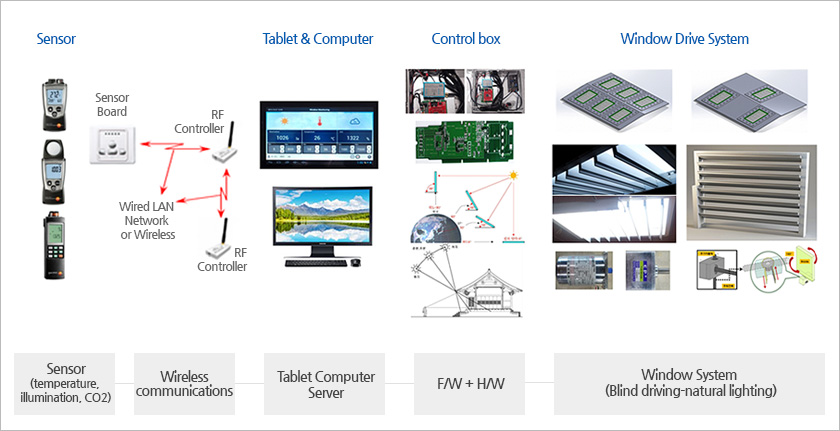

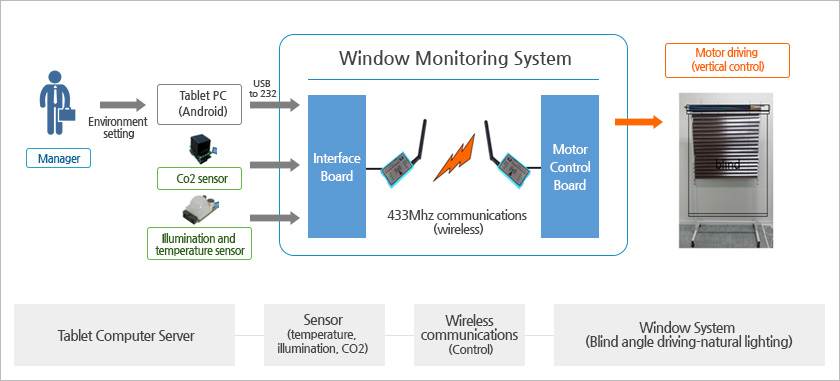

Diagram
Technology development
- 01
Window system development

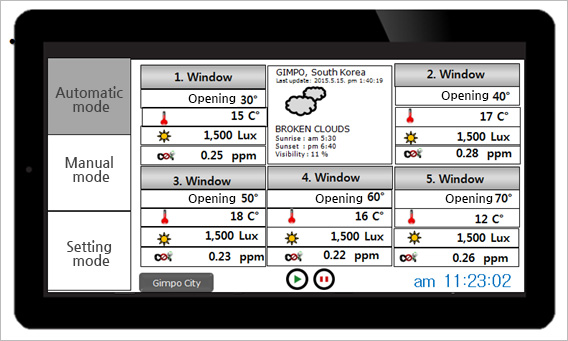

We developed window systems consisting of motor and gear box of operating part, main frame, tempered glass and operation system and control box and tablet PC of controller.
We developed the form of slots by considering structure and rotation angle of the sun to maximize sunlight coming into the workplace as sunlight changes according to season and time.
- 02
Development of motors and gear reducers
We developed the single-phase, 4 pole motor with 90W 220V 60Hz output and stator, core and rotor core by making the slots bigger in order to create a small motor with bigger output.
